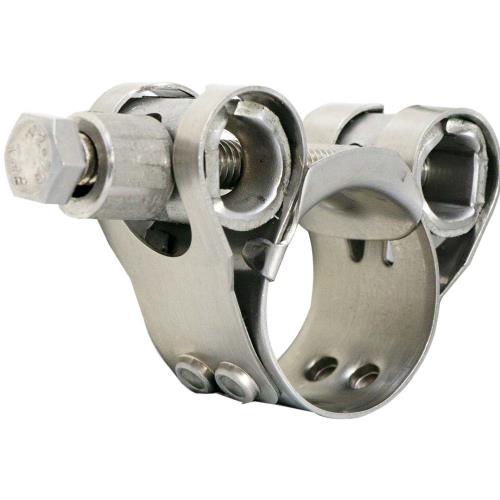

Kale HD18 23-25mm W4 TOX (ea)

HD182325W4T | Kale HD18 23-25mm W4 TOX (ea) Innovatively designed and meticulously engineered, Kale Heavy Duty T-Bolt clamps have achieved new standards in performance and reliability Kale HD T-Bolt clamps are manufactured utilising TOX®-Clinching joints. A cold forming press technique that is more than 70%stronger than welding and superior to tab style mechanicallocks. Produced in Europe to DIN 3017-3 standards, Kale HD T-Boltclamps are suitable for high shore hardness or reinforcedhoses. Additional design features include: • No welding and no contact corrosion points • Hollow ‘D’ shape trunnions to reduce tensile force on thebolt and clinched joint • A profiled bridge with extended tabs for secureattachment to the band without welding • W1 steel bolts are Class 8.8 and feature an integratedspacer in place of a separate bush • Rolled band edges which are designed to protect damage tothe hose or wall fabric • A high clamping force with low free torque value. Specification • Band With: 18mm • Hex: 8mm • Diameter Range: 23-25mm • Tightening Torque: 8Nm Materials • Band: Stainless Steel 1.4301 • Bridge: Stainless Steel 1.4301 • Bolt: ISO 3506-1 Class A2-70 • Bush: Stainless Steel 1.4301 • Trunnion: Stainless Steel 1.4301 • Corrosion Resistance acc. to ISO 9227: Min. 240 hours Available in 2 materials (W1 and W4) in sizes ranging from17-19mm through to 239-252 mm, typical applications includesuction and pump hoses across a wide range of • Industries • Agriculture • Automotive • Marine • Mining • Plumbing • OEMs.
